LS POWER offers high-quality copper connections made from certified European materials. These connections have been used for years in the implementation of large projects in Europe. Our assortment includes both standard and customised products, which can be made based on drawings or elements received from our customers. Thanks to our many years of experience in the energy industry, we are able to find optimal technical solutions for flexible connections, both in the design phase and during installation, while taking into account economic aspects. We are a company focused on building long-term and partnership relationships with our contractors.
Catalogue Download

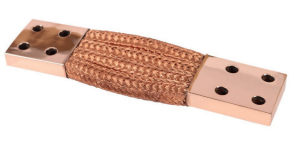

Braided connections
PP connections are made of CuETP braids with a standard single wire thickness of 0.1 mm and crimped copper pipes. The production technology, which uses only electrolytic copper, ensures very good conductivity of the connections. In the standard version, the connection parts do not have holes and are uncovered. There is the possibility of tinning or silver-plating the contact surfaces or alternatively supplying the connections with CuAl plates.
Products of this type are a very good solution for connecting a transformer or generator to a busbar, as well as wherever maximum dampen of vibrations is necessary.
PRODUCT SPECIFICATIONS
- Cu-ETP UNI EN 13602
- Total length of connections is optional
- Single wire Ø 0.10 mm, optionally Ø 0.20 mm
- Total cross-section of braids in the connection from 25 mm² to 5,000 mm²
- Connection width from 18 to 240 mm
- Untinned lugs as standard, optionally tinned, silver-plated, or nickel-plated
- Possibility to use tinned flat and round braids
- Possibility of insulating connections (heat shrink, silicone)
- Spacing and hole diameter are optional
- Special designs according to the specification available on request
- Maximum current load values are given in the table

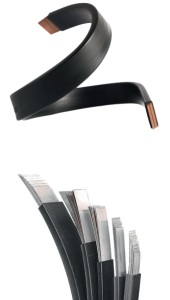

Flexible insulated busbars
Insulated flexible busbars are designed to meet the highest technical requirements. They consist of several copper strips, each 1mm thick, laid freely on top of each other. The strips are covered with insulation made of a special vinyl mixture that is highly resistant and more elastic than similar products from other companies. The insulation allows for any shaping of the busbars while maintaining the desired shape.
Using of insulated flexible busbars saves installation time, makes designing easier, and increases efficiency. ES connections are particularly well suited for switchgears and the transportation industry.
PRODUCT SPECIFICATIONS
- Cu-ETP UNI EN 1652
- Standard length of the busbar is 2 m, other lengths available on request
- Self-extinguishing UL 94 V0 black insulation, thickness 1.8 – 2 mm
- Operating voltage of 3500 V AC – 4000 V DC
- Operating temperature: -40 / +105 °C
- Dielectric strength of 20 kV/mm
- Halogen-free insulation available on request
- Spacing and hole diameter are optional
- Possibility of supplying aluminum busbars
- Special constructions according to specifications available on request

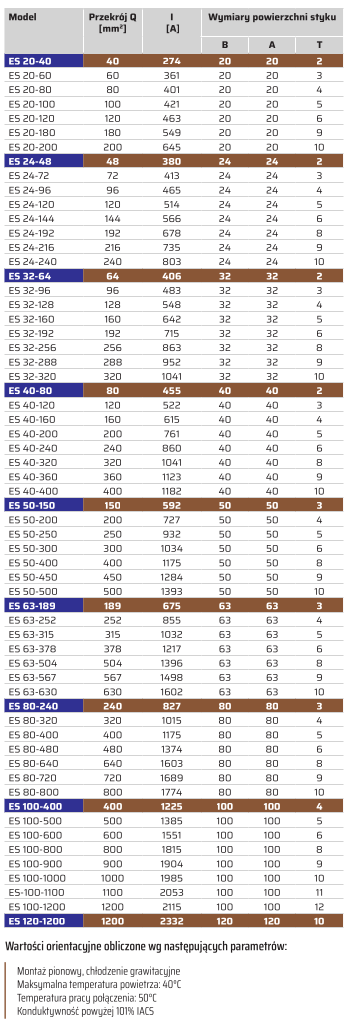

- Maximum current load values are provided in the table.

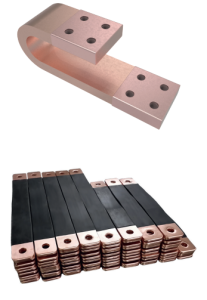

Press-welded and riveted connections
PZ connections are made from high-conductivity electrolytic copper strips with a thickness ranging from 0.1 to 0.5 mm. Conductivity of such connections is identical to that of busbars thanks to the absence of any filling material in the joint. The production technology allows for maintaining a constant cross-section throughout the entire length of the connection.
It is possible to supply connections made of copper of a different grade than the standard CuETP, as well as to make connections in a riveted version, which is particularly well-suited for use in welders.
PRODUCT SPECIFICATIONS
- Cu-ETP UNI EN 13602
- Total length of connections is optional
- Copper tape thickness from 0.1 mm to 0.5 mm
- Cu-OF (C10200) tapes can be used on request
- Possibility of tinning of terminals
- Possibility of using heat-shrink insulation
- Minimum electrical conductivity 58 MS/m
- Special constructions according to specification available on request
- Maximum current load values are given in the table
Measurements on the object
We conduct on-site visits throughout the Europe. Our engineers will gladly come to the facility to take measurements of the installation and advise on the selection of the most technically and economically advantageous solutions. We take responsibility for the accuracy of the measurement and guarantee the correctness of the connections, relieving our clients of any responsibility.
Project support
Depending on the needs, we design connections ensuring the appropriate cross-section and thermal loads of the solutions we use.
